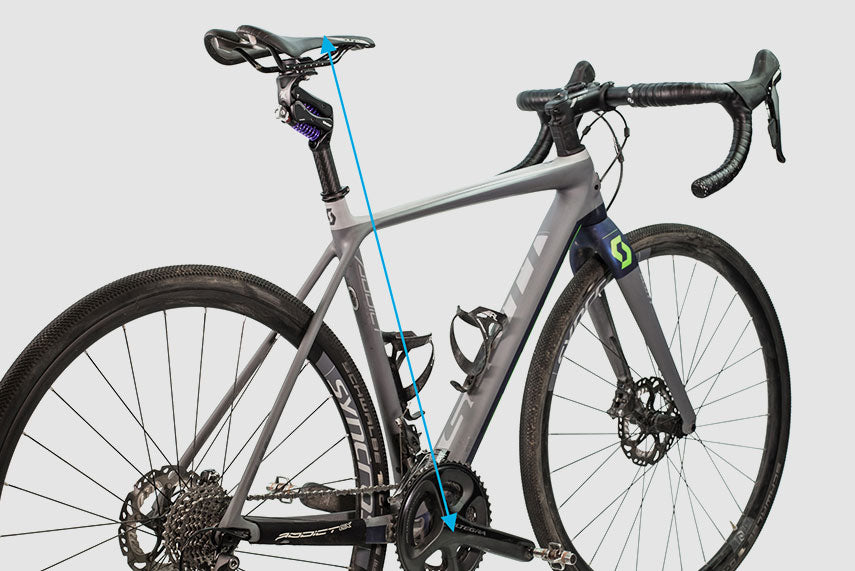

• Height – Middle of bottom bracket to the top of saddle
• Reach – Saddle tip to the center of the bars at the stem
• Tilt – Tilt of your saddle
• Install KINEKT 1 cm higher than normal to allow for sag
• Install your saddle to the post

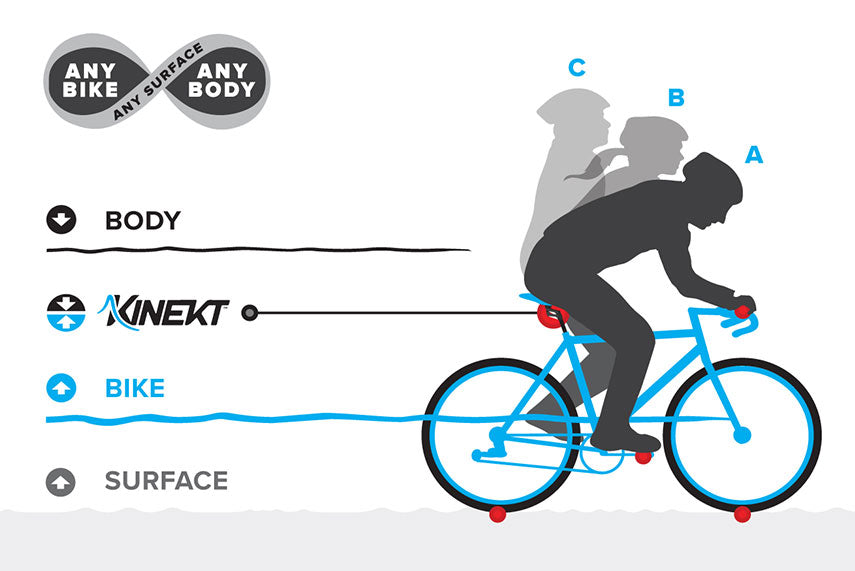

• See Rider position A, B, C
• Sit in normal riding position
• Tighten pre-load bolt (control knob) until saddle no longer rises when unweighted
• Reset saddle position using your previously recorded measurements
• Use previously recorded height, reach and tilt

• Loosen or tighten pre-load bolt/control knob until desired comfort, position, and performance are achieved
• Further adjust during subsequent rides to establish settings for various surfaces
• Record post settings to repeat favorite set-up on any bike!

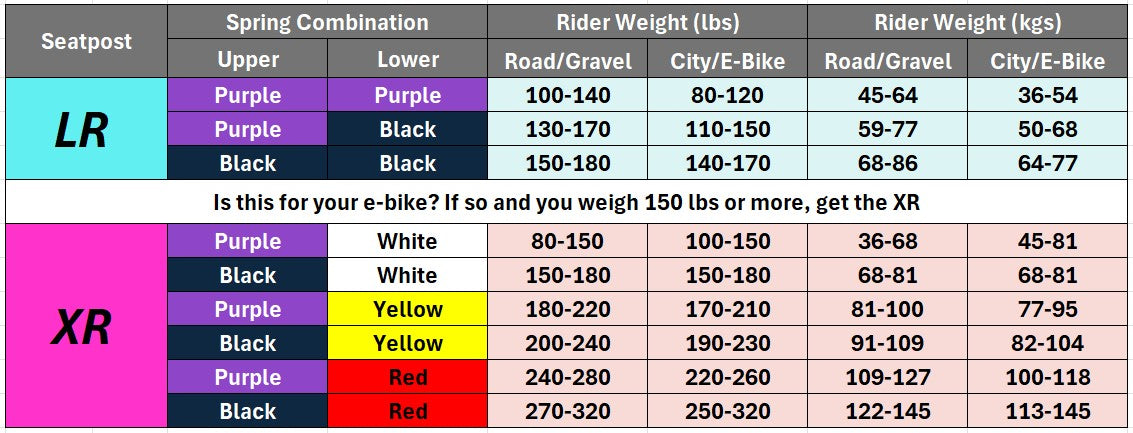

It’s easy to tune a KINEKT Seatpost to your weight and riding style. The seat post comes with 2 installed springs (1 upper, 1 lower) and 2 (LR) or 3 (XR) additional springs. They’re easy to swap. Use the chart match spring combinations to your preferred ride. Try multiple combinations to get it just right. There’s also an adjuster on the seat post for fine tuning.

LR seatposts come with Black/Black springs installed.
XR seatposts come with Black/Yellow springs installed.
